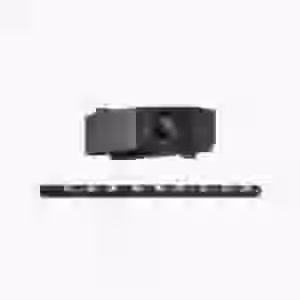

The chamber camera is an optional upgrade that you can install for the P1P. Also, the LED light can illuminate an indoor camera or the interior of a printer. The chamber camera has traditional timelapse function.
- Traditional Timelapse: This feature uses the chamber camera to automatically create a time-lapse video of a print and make an innovative video (Available only on the local network). The Smooth time-lapse is still under development as well as Spaghetti Detection. Please stay tuned!
Compatibility
P1P Exclusive
Installation
1. To complete the installation of the and LED light, you'll need to 3D print the light shell (with PLA) using the 3MF files provided on the Wiki
2. Once you've printed the shell, proceed to install it with the camera in the chamber.
| FOV | 119° | Resolution Ratio | 1280*720 |
| Frame rate | 0.5 | Pixel count | 1M |
| Focal length | 2.50 MM | Aperture | F2.2 |
| LED Input voltage | 5V | Filming range | 5cm - 30cm |
| Working Temperature | 0℃ to 60℃ | Color | Black |
| Product weight | 50 g | Package size | 190*230*35 mm |
